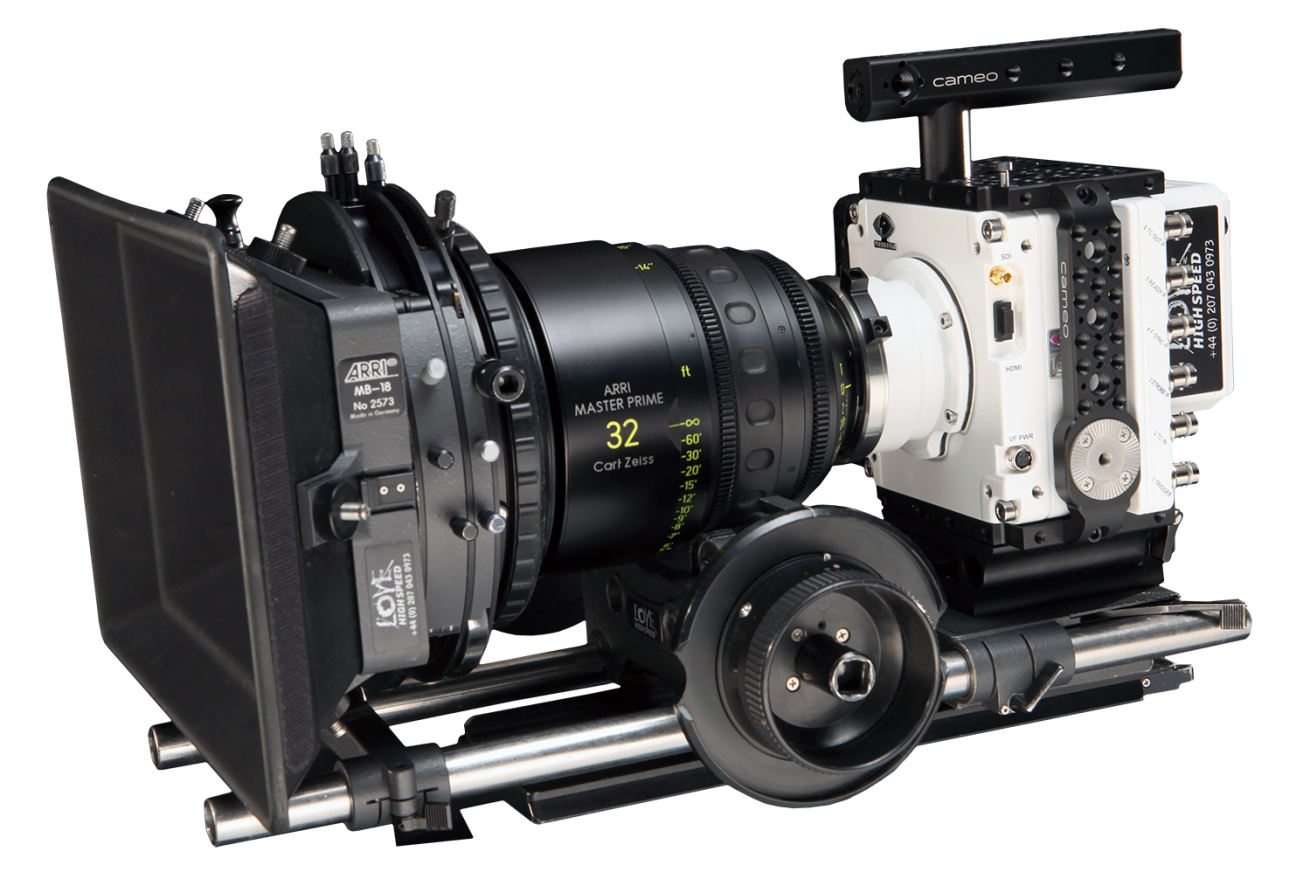

Phantom VEO 640S

The Phantom VEO 640S – Available from Love High Speed with PL, Panavision PV, Canon EF or Nikon lens Mount.

A small, rugged and powerful high-speed camera packed full of features. Made with a 35mm format sensor, supports up to 2.5K resolution up to 1,666 frames-per-second, on-camera controls, CFast 2.0 media and all in a compact 5.6 lb (2.5kg) design.

The S-model includes additional signal availability, on-camera controls, ruggedized connectors and compatibility with removable CFast 2.0 storage media.

Provided by Love High Speed with the maximum RAM available. The RAM allows the camera to record for a set time depending on the frame rate and resolution. The increased internal RAM of 72GB allows the VEO 640S to record for 24 seconds at 1000fps at 1920×1080. See the recording time table below.

Supports up to 2.5K Resolution

At 2.5K resolution the VEO 640S offers super-35mm field of view and depth of field. Resolution can be lowered to several high definition formats to increase the maximum frames per second.

Records up to 2,800fps at 1080p

Shoot between 24fps and 1,600fps in 2.5K resolution and 24fps and 2,800fps in 1080p.

Supports CFast 2.0 media

The small, fast and durable standard CFast 2.0 recording media is supported offering a simple and reliable workflow for data management.

Maximum internal RAM supplied as standard

All Love High Speed's Phantom VEO cameras come with the maximum 72GB internal RAM as standard. Shoot continuously for 13 seconds at 1000fps at 2.5K. Resulting in a shot lasting over 9 minutes on playback.

Resolution Frame Rate (fps) 72GB RAM Maximum Playback time at 25fps
2560 x 1600 (max res) 1,500 (max fps) 8.3 seconds 8 Minutes 18 Seconds
2560 x 1440 (2.5K 1.78:1) 1,666 (max fps) 8.3 seconds 9 Minutes 14 seconds
2048 x 1152 (2K 1.78:1) 2,510 (max fps) 8.6 seconds 14 Minutes
1920 x 1080 (HD) 2,822 (max fps) 8.7 seconds 16 Minutes
1920 x 1600 (Anamorphic) 1,909 (max fps) 8.7 seconds 11 Minutes
1280 x 720 (720p) 5,788 (max fps) 9.5 seconds 36 Minutes
  • Supports CFast 2.0 media
  • 72GB of internal memory
  • Small, rugged, powerful high-speed camera
  • On-board camera controls for tether free operating
  • On-board 12V batteries
  • Sync connector to simplify 3D capture
  • GbE Ethernet port for software operation
  • HDSDI and HDMI Video Outputs for monitoring
  • Wireless Camera Control available
  • Lens mount interchangeable between PL, PV, Canon EF and Nikon
Format Resolution Size (mm) Image Circle
Full Sensor 2560×1600 25.6×16.0 30.2mm
2.5K 1.78:1 2560×1440 25.6×14.4 29.4mm
2K 1.78:1 2048×1152 20.5×11.5 23.5mm
HD 1920×1080 19.2×10.8 22mm
2:1 Anamorphic 1920×1600 19.2×16.0 24.9mm
720p 1280×720 12.8×7.2 14.6mm

*An anamorphic resolution can be set in camera and the data saved to be de-squeezed in post production to obtain the correct ratio. But currently there is no on-camera HDSDI anamorphic de-squeeze. Meaning although you can shoot in a 2:1 ratio on the VEO, you can not currently monitor in the correct ratio. The Phantom Flex4K can de-squeeze 2:1 ratio in camera to monitor correctly for anamorphic.
