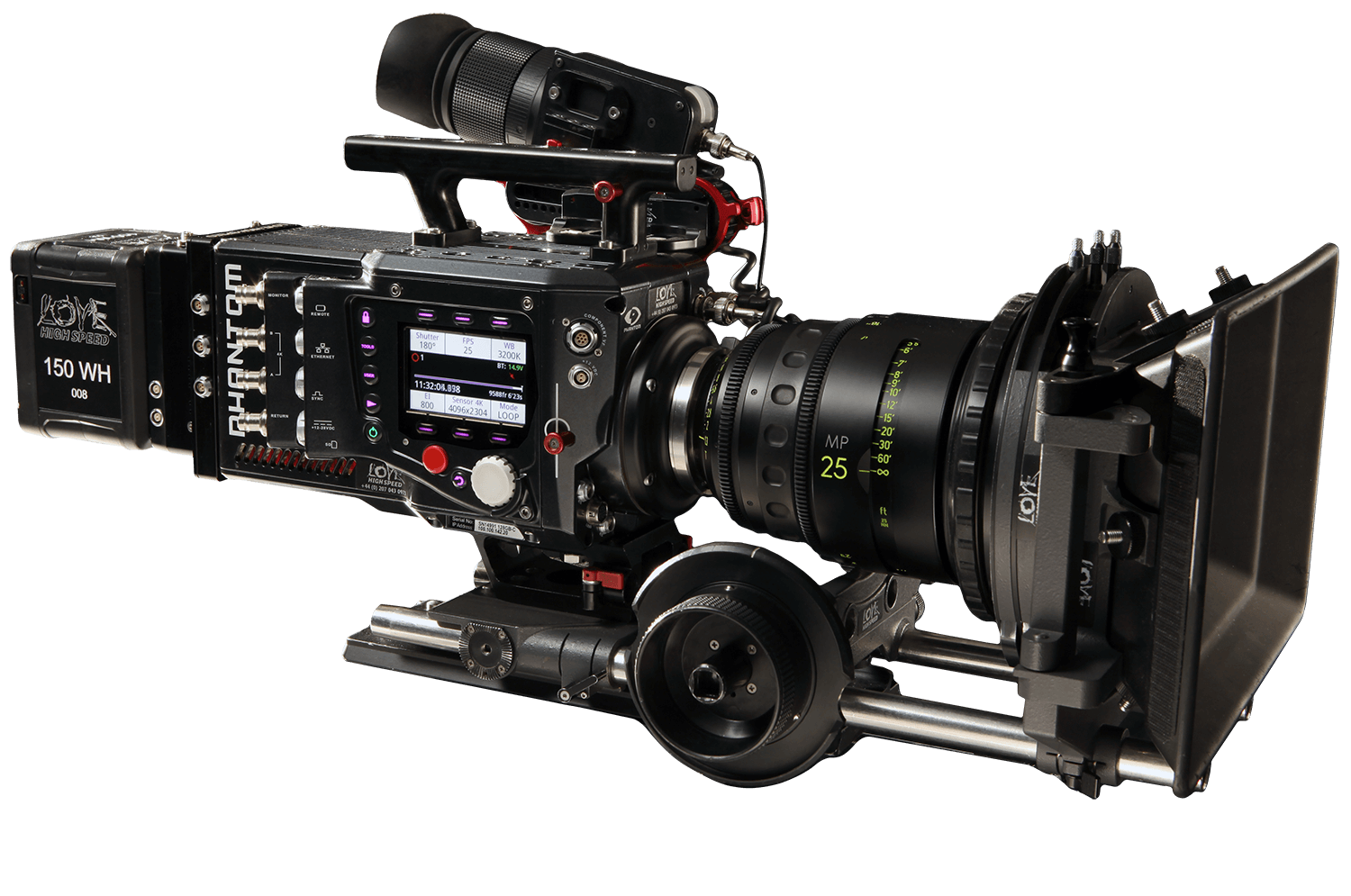

The Phantom Flex4K – Available from Love High Speed with PL, Panavision PV, LPL or Canon EF lens Mount.
Made with a 35mm format sensor, supports up to 4K resolution up to 1,000 frames-per-second. Redefining what’s possible when it comes to high-speed imaging, the Phantom Flex4K offers exceptional image quality, new workflow options, a user-friendly camera control interface and improved performance at standard frame rates.
At its full acquisition resolution of 4096 x 2304 the camera is capable of recording from 24 to 938 frames-per-second (fps), and up to 1,000 fps at 4096 x 2160 resolution. Latitude, resolution and sensitivity have all been greatly increased in this model.
Additionally, the RAM upgrade which is now standard in all our cameras doubles the internal RAM to 128GB. The RAM allows the camera to record for a set time depending on the frame rate and resolution. The increased internal RAM of 128GB allows the Flex4K to record for twice as long at all resolutions and frame rates. See the recording time table below.
With the use of the CineMags, the on-board solid state memory, users can record into camera's RAM and then upload the recording to the CineMag in seconds. This eliminates camera down time between shots and offers an unrivalled workflow.

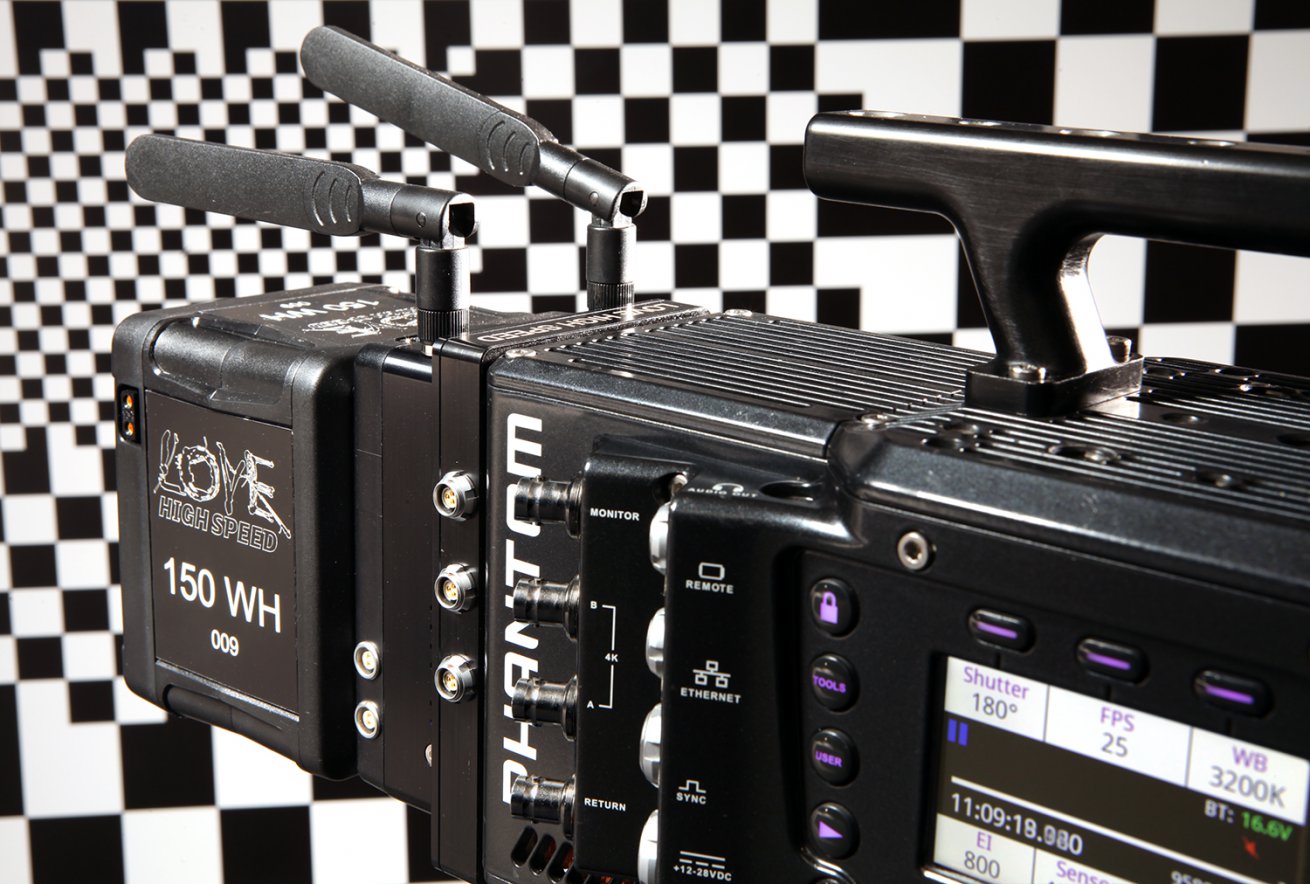

Bespoke customisations from Love High Speed come standard in our Phantom Flex4K cameras. A fully customised and integrated power accessory box has been developed to provide the power distribution camera crews expect from a modern digital camera.
Designed to fit securely between the onboard battery and the camera body, 12v and 24v power from either the onboard battery or the 3-pin Fischer primary power input is fed to the power accessory box. The additional outputs continue to work in all power input configurations, providing multiple 24v 3-Pin RS, 12v 2-Pin Lemo and 12v D-Tap (P-Tap) power sockets.
Additionally, a fully customised development from Love High Speed is the wireless camera control module. Sitting behind the power accessory box, this low profile addition allows full camera control over Wifi. Resulting in a neat and cable integrated module to reliably control all menu aspects of the camera.
These enhancements have been designed to offer increased functionality, making for a more industry standard system and speeding up the camera control, camera cut and save process.
All Love High Speed's Phantom Flex4K cameras come with the maximum 128GB internal RAM as standard. (subject to availability).
|Resolution||Frame Rate (fps)||64GB RAM||128GB RAM||Run/Stop Mode Direct To 2TB CineMag|
|4096 x 2304 (max res)||938 (max fps)||5 seconds||10 seconds||120fps (max fps)|
|4096 x 2160 (4K std)||1000 (max fps)||5 seconds||10 seconds||128fps (max fps)|
|3840 x 2160 (UHD)||1000 (max fps)||5 seconds||10 seconds||128fps (max fps)|
|2752 x 2304 (anamorphic)||938 (max fps)||5 seconds||10 seconds||120fps (max fps)|
|1920 x 1080 (16 x 9)||1977 (max fps)||10 seconds||20 seconds||512fps (max fps)|
|1280 x 720 (16 x 9)||2932 (max fps)||10 seconds||20 seconds||768fps (max fps)|
- 35mm depth-of-field
- 35mm field-of-view at 4096×2304
- Up to 1000fps at 4096×2160
- 12-bit pixel depth
- ASA selectable between 250 – 1600
- Phantom CineMag™IV support – faster data throughput
- 2x 3G-SDI outputs for 1080p or full 4K video image
- Dedicated OLED HDSDI Colour Viewfinder designed by Astro Design
- 12V and 24V Accessory Power Box from Love High Speed
- Integrated 12v battery mount
- Anamorphic shooting mode and monitor de-sqeeze
- Wireless Camera Control available
- Lens mount interchangeable between PL and Panavision PV
|Format||Resolution||Size (mm)||Image Circle|
|DCI 4K (1.89)||4096×2160||27.7×14.6||31.3mm|
